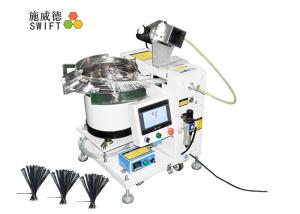

Adjustable Binding Forces Automatic Cable Tie Tool With a cable tie gun Power
Cable tie gun : Fixed in the bench, automatically bundle, tighten and cut nylon cable ties off. Once treat foot pedal, all actions would be finished in 1 second.
SWT25120F advantages
1. Cable tie gun could be fixed near the assembly line. Worker can hold the items by two hands.
2. The binding forces are adjusted, pls turn the knob in the cable tie gun.
| The binding forces | The number |
| 2kg | 0 |
| 4kg | 1 |
| 6kg | 2 |
| 8kg | 4 |
3. Bundling one cable tie takes about 1S.
4. The tension forces are adjustable.
5. With touch screen, easy to manage.
6. Be more suitable for the wires with PVC sleeve, or bags sealed.
7. Voltage: AC220V,50/60Hz
SWT25120F technical data
| 1 | Description | The machine could automatically thread and tighten cable ties. |
| 2 | Brand | SWIFT |
| 3 | Model | SWT25120F |
| 4 | Cable ties details | Type | Bulk cable ties |
| Model | T25120 |
| Width | 2.5mm |
| Length | 120mm |
| Thickness | 1.1mm |
| 5 | Cable ties material | Hingh quality nylon 66, invista brand |
| 6 | Product Dimension | Bundle ø max. | 22mm |
| Bundle ø min. | 2mm |
| 7 | Bundling speed | 1.0S |
| 8 | Power supply | AC110V/220V, 50/60Hz |
| 9 | Pneumatic pressure | 5kg/cm² |
| 10 | Max Power | 1,000W |
| 11 | Certificates | CE and RoHS certified. |
Applications
Silicon tubes, plastic pipes, PVC sleeve, bags
Trade terms
1. Payment: 100%TT payment before shipment.
2. Lead time: 10 - 15working days after receive payment.
3. Shipment: By sea/air.
FAQ
1. What is the bigest difference, compared with other supplers?
Our factory creats automatic cable tie tool using loose nylon zip ties. And we focuses on it only.
Other factories copy our machines and they produces other different equiments.
2. Can I buy a cable tie gun only?
No, it is not useful to buy a cable tie gun only. That is because loose cable ties are transferred into the gun by the host machine.
